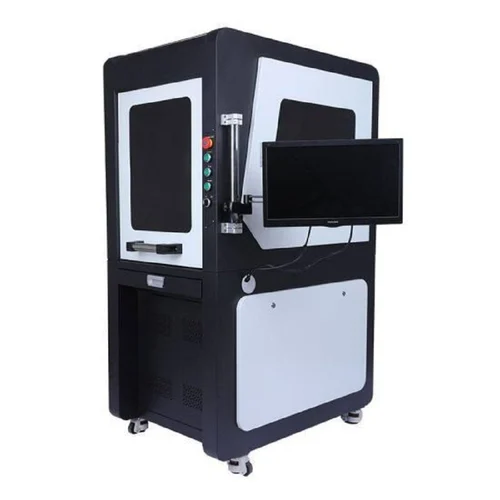

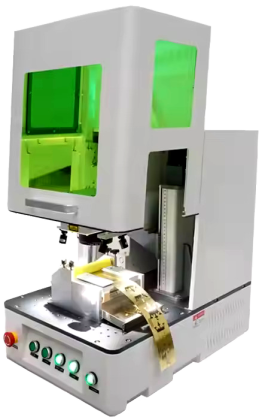

Gold Laser Marking Machine
Technical Specification
| Source | Category |
|---|---|
| Laser Power | 30W, 50W, 60W, 80W, 100W |
| Laser Wavelength | 1064 nm |
| Laser Frequency | 20K HZ - 80KHZ |
| Linear Speed | 7000 mm/s max |
| Marking Size | 70×70mm, 110×110mm, 175×175mm, 200×200mm, 250×250mm, 300×300mm |
| Min Font Height | 0.2 mm |
| Min Line Width | 0.01 mm |
| Repetition Accuracy | 0.003 mm |
| Operating Power | 0.5KW / AC220V / 50Hz |
| File Format Support | AI, PLT, PCX, DXF, BMP |
| Work Environments | Humidity: 10% - 90% |
| Cooling Type | Air Cooled |
| Gauge Cutting | 15 to 35 |
Features
- Focused on high reflective noble metal material cutting:
- 9k Gold
- 24k Gold
- Silver
- Bronze (all grades)
- No cutting burr with shining cutting edge
- Recycling collection system
- Loss rate: 1.0 – 4.0 g/kg
- Thickness cutting range (Gold/Silver/Copper): 1mm – 3mm
