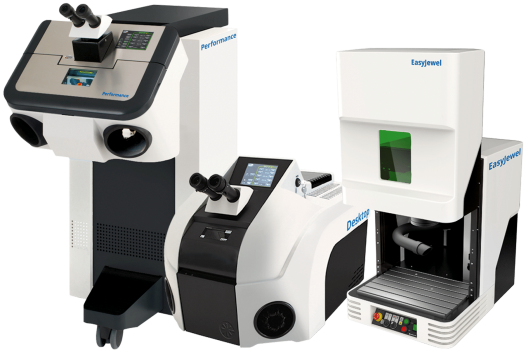

Jewellary Laser Welding Machine
Technical Specification
| MAX. Output Power |
200W |
| Wavelength |
1064mm |
| Type of Laser |
Nd:YAG |
| Pump Source |
Xenon Lamp |
| Max. Single Pulse Energy |
90J - 140J |
| Pulse Width |
0.1 - 20ms |
| Frequency |
0 - 100HZ |
| Solder Joint Size |
0.2 - 2.0mm |
| Max. Welding Depth |
1.0mm |
| Cooling Way |
Water Cooling |
| Power System |
7KW |
| Power Requirement |
220V ±10% |
Features
- Gold & Silver Repair
- 24Hr Continuously Working
- High-Speed Welding Compatible
- First and Last Pulse Equally Usable
- Maintenance-Free Operation
- Maximized Peak Power Over Full
- Operational Repetition Rate
