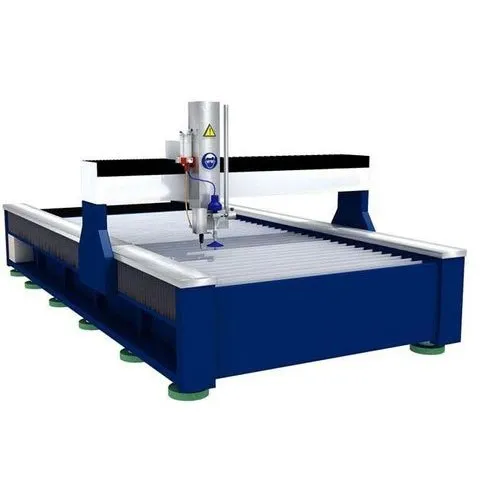

CNC Water Jet Cutting Machine
Technical Specification
| Source | Category |
|---|---|
| Country of Origin | Made in India / Imported |
| Model | KLWJ-1530, 1010, 1325, 2060, 4060 |
| Capacity | 30, 50, 120 HP |
| Automation Grade | Automatic |
| Orifice Diameter | 0.1-0.3 MM |
| Control Type | Software |
| Spindle Speed | UP to 80000/RPM |
| Cutting Technique | Abrasive Cutting |
| Max. Water Flow | 3L/min-5L |
| Max. Nozzle Diameter | 0.3-15mm |
| Max. Pressure | 420 MPA |
| Continuous Cutting Pressure | 340 MPA |
| Main Motor Power | 37KW |
| Power Supply | 380V/50HZ, 3 Phase |
Features
- No Distortion Due to Heat as with The Laser 6 Plasma Cutting Machine (cold Cutting Technology)
- Can Cut Up to 200 Mm Steel 6 Other Material Such As
- Granite, Hard Wood, SS, MS, Brass, Plastic, Plexiglas, Marble, Tiles, Glass
