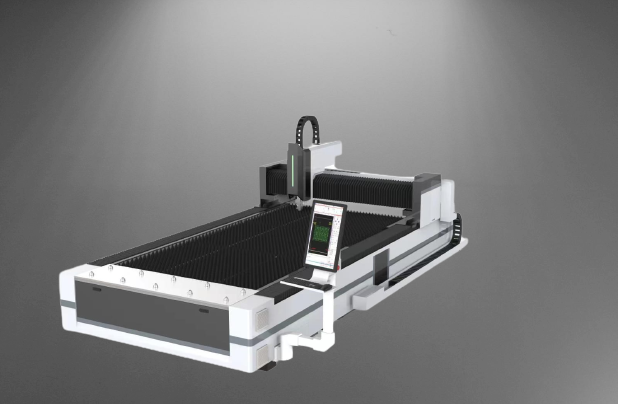

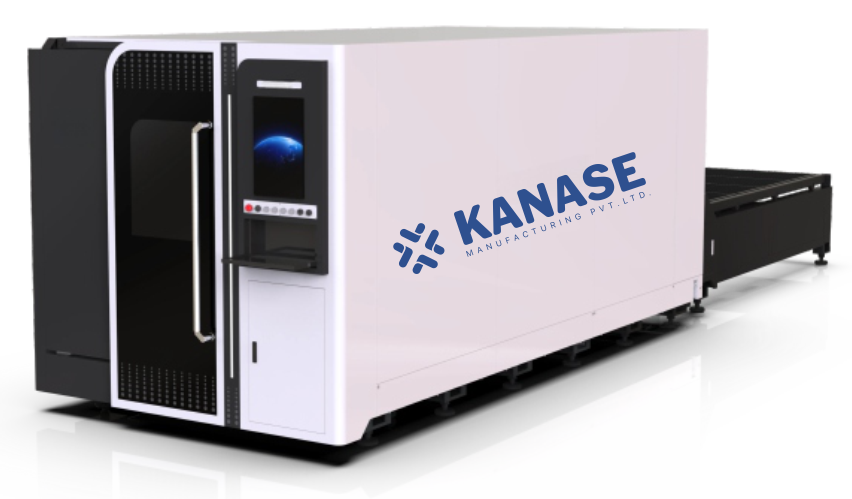

CNC Fiber Laser Metal Cutting Machine
Technical Specification
| Source | Category |
|---|---|
| Model No. | KLFLC - 1001 |
| Working Area | 10x5, 6x12, 6x18, 6x20, 8x20 |
| Laser source | 1500/2000/3000/6000/12000 |
| Cutting Head | Raytool, WSX, BOCI |
| Laser Wavelength | 1080 nm |
| Max. Cutting Speed | 30 - 50 m/mm (Depends on Watt 6 Thickness) |
| Max. Traveling Speed | 120 -180 Meter / Min.z |
| Position Accuracy | <± 0.02 mm |
| Minimum Line Width | < 0.12 mm |
| Cooling System | Water Cooling |
| Drives 6 Control | AC Servo Motor |
| Working Voltage | AC 420V |
| Weightage | 3-20 Ton (Depends On Model) |
| SOURCE | IPG, RAYCUS, MAX, JPT |
Features
- High Quality Linear Guide Taiwan
- Cutting Head from Raytool / Boci / Wsx
- Driving Systems: AC Servo Motor 6 Drivers
- CypCut / Raytool Control System
- High Quality and Professional Thermostatic Industrial Chiller S 6 A / Hexacool
Application
- Engineering
- Gift & Articles
- Signage
- Decoration
- Applicable to Fast Cutting on plate in Metal, Mainly for Cutting On Ss.
